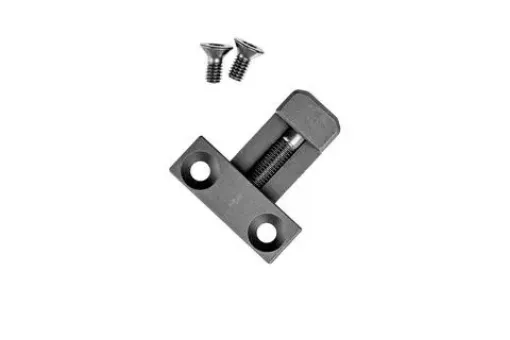

ARISAKA Side Scout Mount - Picatinny

The Side Scout Mount Picatinny (SSM) replaces the stock Picatinny rail adapter with a low-profile mount that tucks the light underneath either side of the ATPIAL laser/illuminator series (including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ). It also allows the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.

Designed for the following light models:

• Scout Lights
• Modlite PLH and OKW weapon lights
• Arisaka 300 and 600 Series
• Streamlight Protac Rail Mount lights

Dimensions

• Length: 1.265"
• Thickness: 0.2"
• Weight: 0.6 oz

Compatible with:

Modlite PLH and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Arisaka 300 and 600 Series.

Specifications

• CNC machined from 6061-T6 aluminum
• MIL-A-8625 Type III hard coat anodized
• Includes necessary screws to attach light body to mount
• Requires IP27/T27 and IP20/T20 Torx drivers for installation (not included)
• T9 Torx driver required to remove stock Picatinny mount from Surefire Scout Lights
• Recommended torque: 20 in-lbs for light body, 30 in-lbs for clamping screw with low/medium strength threadlocker (Loctite 222 or 243)
• Made in the USA
• Patent Pending under Arisaka LLC
